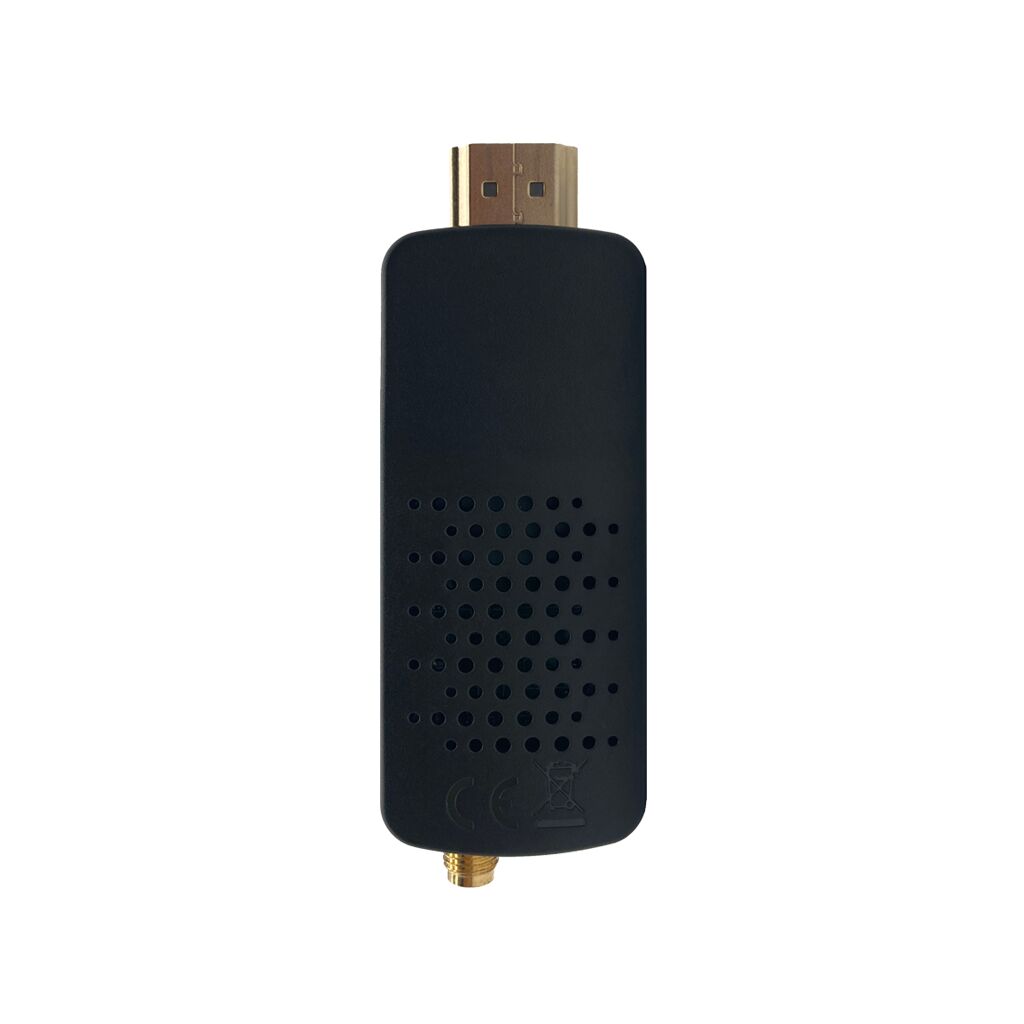

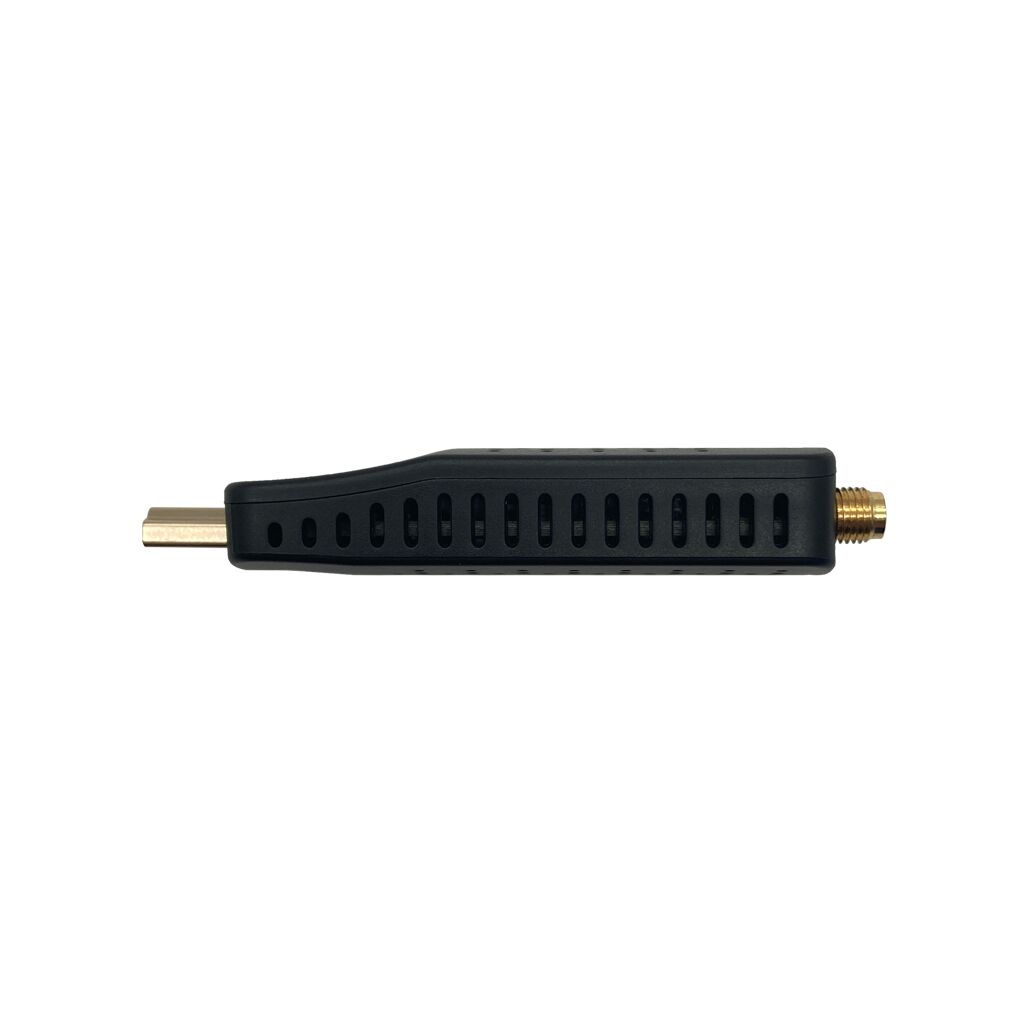

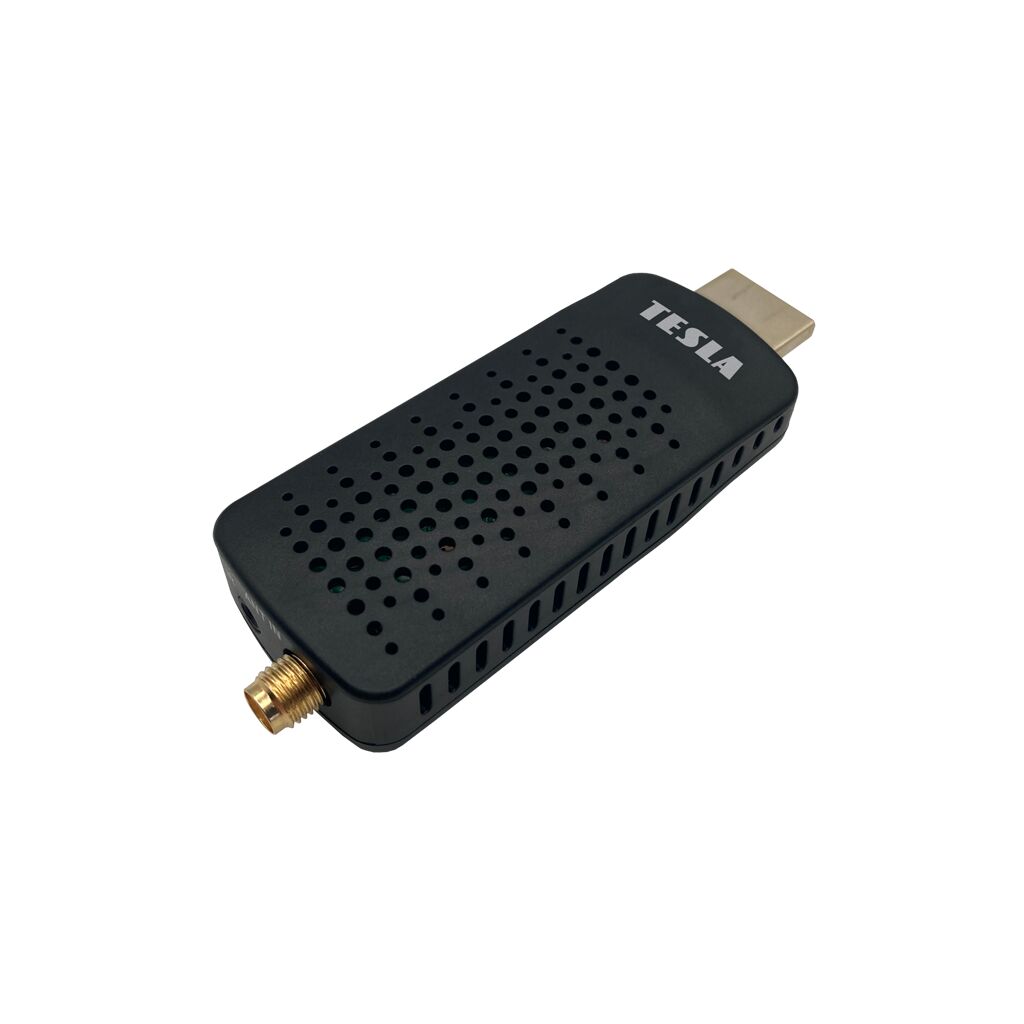

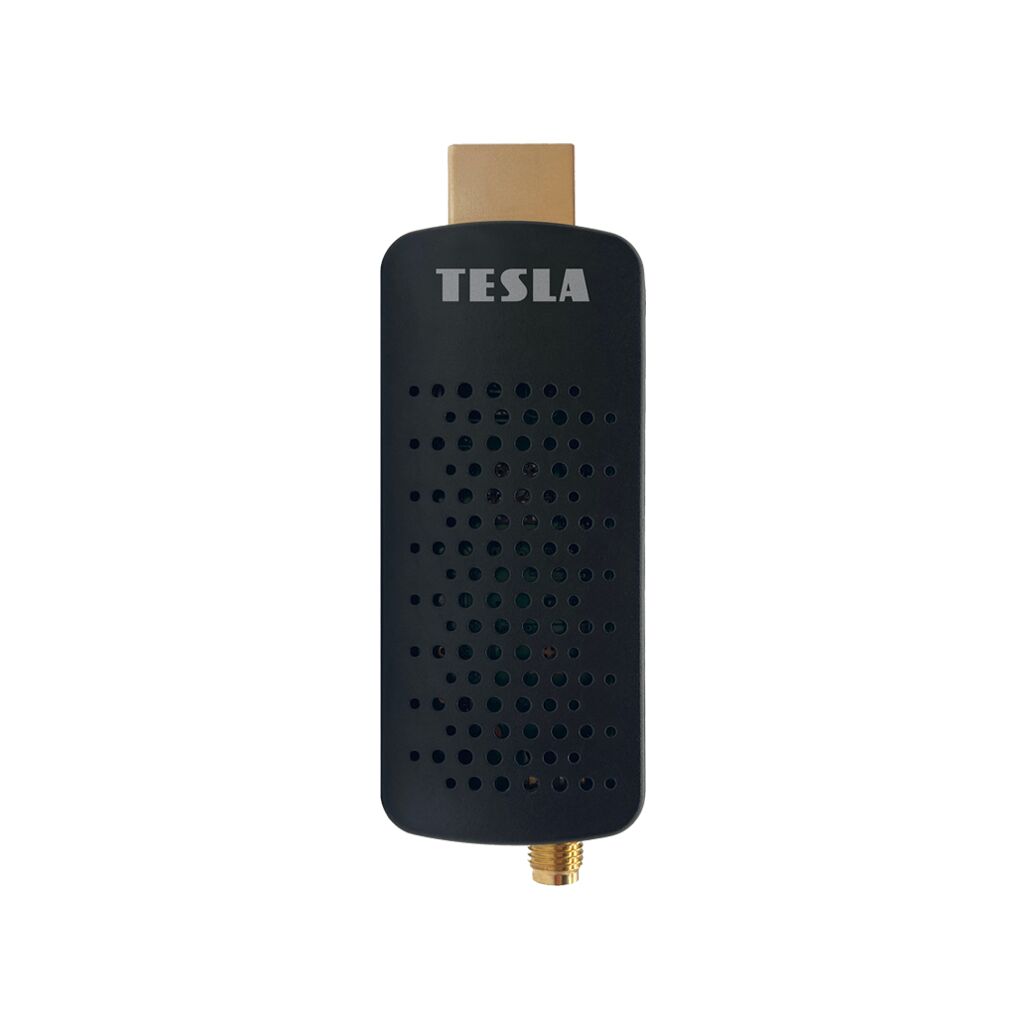

TESLA TE‒222 Dongle
DVB-T2 Set-Top Box

  • More variants
  • H.265 (HEVC) support
  • recording to a USB drive, TimeShift feature
  • can be placed behind the TV
  • support for single-remote control via HDMI-CEC
Manufacturer TESLA
Product code DBTTEH11D22
Product EAN 8595689803087

A set-top box for the new DVB-T2 H.265 (HEVC) digital broadcast standard in the Czech Republic, designed to be used with a standard antenna and capable of being placed behind the TV.

Installation

Easy automatic installation and channel tuning thanks to the setup wizard. Manual channel tuning is also available.





Connecting to Your TV

You can plug the TESLA TE-222 Dongle directly into the HDMI port on your TV or use the HDMI extension cable (included) if the port is hard to reach—for example, if your TV is mounted on the wall.



Connecting to an Antenna

You can connect your antenna cable to the device using the connector with a standard IEC plug (included).

Multimedia

You can play movies, music, or photos via an external USB storage device. You can also record broadcast programs and schedule recordings for when you’re away. You can then play back the recording at any time and even skip the commercials. You can also do this using the TimeShift feature, which this receiver supports.

HDMI-CEC Feature

A feature designed to control connected devices via an HDMI cable using just one remote control. Individual CEC-enabled devices can therefore control each other. For example, the set-top box remote control can simultaneously turn the TV on or off. *

Specifications

  • Tuner compatible with DVB-T2 and H.265 (HEVC) broadcasting
  • HDMI-CEC support
  • Dolby Digital
  • Backward compatible with MPEG-4 HD/MPEG-4 SD/AVC/H.264 HP@L4, MPEG-2, and MPEG-4 SD
  • Supports scheduled recording; manual setting of start and end times for recording
  • 4:3PS/4:3LB/16:9/Auto picture modes
  • Resolutions: 576i, 576p, 720p, 1080i, 1080p
  • FAT32 support
  • Recording to .TS format
  • Easy automatic channel setup and tuning, or channel-by-channel tuning
  • Option to manually sort channels
  • Intuitive on-screen menu
  • Electronic Program Guide (EPG)
  • teletext
  • Support for MPEG2/M2TS/TS/AVI/MKV/3G2/3GP/MP4/MOV/FLV/F4V/VOB/WAV
  • Support for displaying both internal and external DivX/MKV subtitles
  • Automatic photo slideshow
  • Parental controls
  • Support for device updates via the USB port
  • Standby power consumption less than 1 W

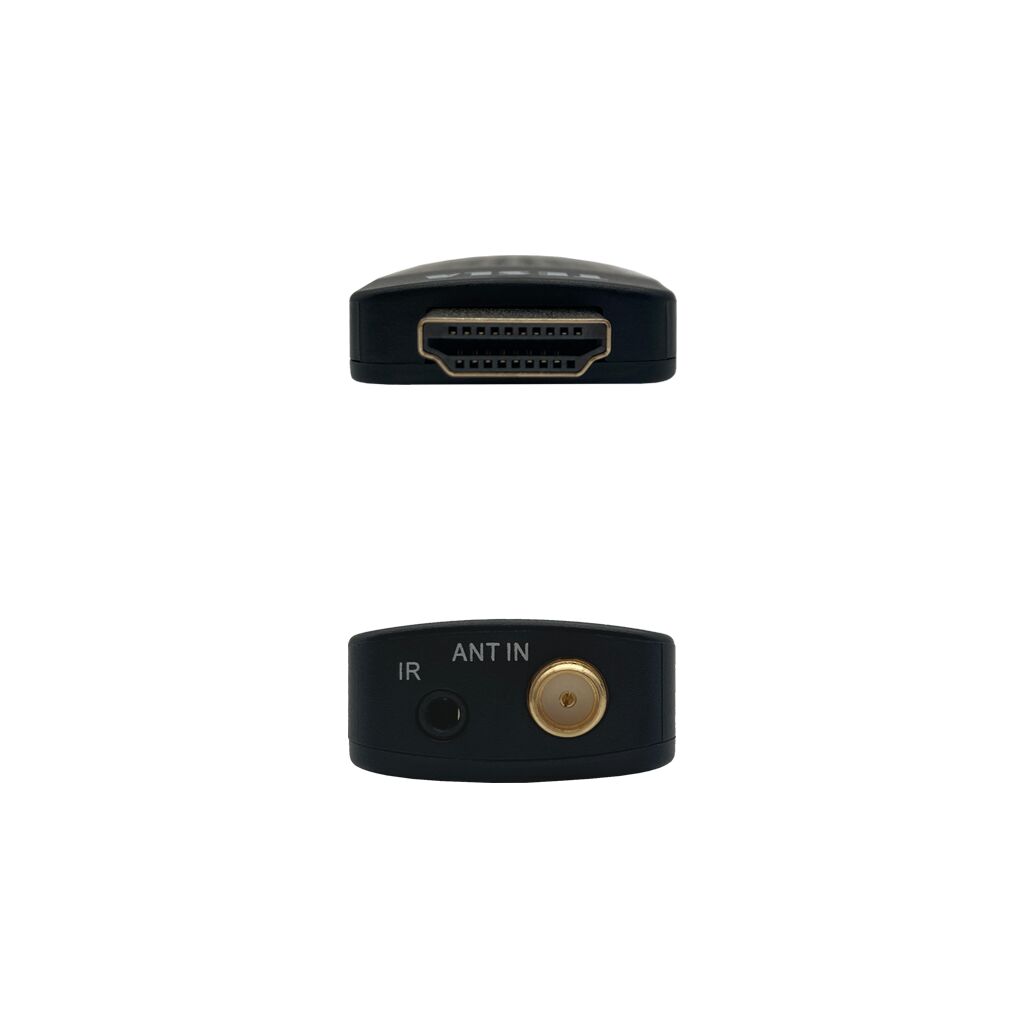

Interfaces

  • HDMI connector (HD OUT)
  • microUSB port (shared for USB and power)
  • Antenna input
  • IR sensor input

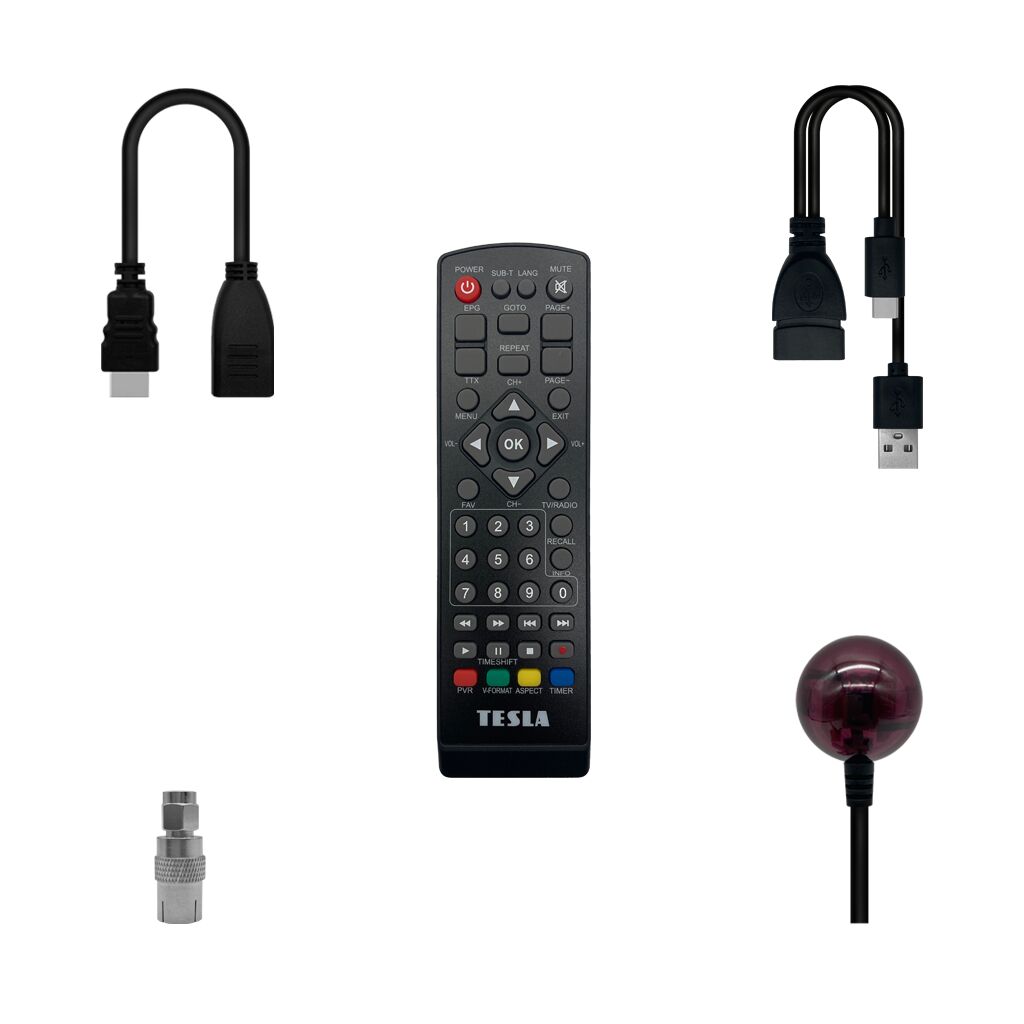

Package includes

  • TESLA TE-222 receiver
  • remote control
  • 2 AAA batteries
  • IR sensor
  • HDMI extension cable
  • microUSB power cable
  • User manual

Dimensions

  • Receiver: 78 x 28 x 12 mm, weight 17 g
  • IR sensor cable: 980 mm, weight including cable 15 g
  • Remote control: 150 x 44 x 18 mm, weight 47 g

* Both devices must support the HDMI-CEC function. However, proper operation cannot always be guaranteed.
