Key Benefits and Features of the TESLA SecureQ DB5

Image Quality

• Clear view of the entrance—the camera captures details of people and small objects in front of the door, making it easy to identify visitors and check for deliveries.
• Wide-angle view – the field of view covers the area from head to toe, including the threshold, so both the person and the area near the doormat are clearly visible.

Night Vision

• Nighttime monitoring – Infrared illumination and automatic switching between day and night modes keep the image clear even after dark.
• Monitoring the surroundings even in the dark – the camera allows you to monitor the area around the door even in complete darkness, which enhances your sense of security.

Smart Detection and Security

• PIR motion detection – the sensor reacts to body heat and minimizes false alarms caused by shadows or passing cars, for example.
• Human figure recognition – the software determines whether a person is moving in front of the door and sends targeted alerts.
• Smart package monitoring – the system monitors the area near the ground, recognizes a delivered package, and notifies you when it has been stored or moved.
• Customizable Detection Zones – Only selected parts of the image are monitored, which reduces the number of unnecessary alerts.
• Private zones in the video feed – selected areas can be permanently masked so that, for example, neighbors’ windows or a public sidewalk are not monitored.
• Tamper protection – if someone attempts to remove the doorbell from its mount, an alarm is triggered and the incident is recorded.
• Built-in siren and alarm – in the event of suspicious activity, a loud audible alarm can be triggered to deter uninvited guests.
• Do Not Disturb Mode – During preset times, it silences doorbell chimes and notifications, ensuring peace and quiet at night or while on vacation.
• Low Battery Alert – The device continuously monitors the battery level and notifies you in a timely manner when recharging is needed.

Sound, Communication, and Alerts

• Two-Way Communication – The built-in microphone and speaker allow you to speak with visitors in real time.
• Echo cancellation – audio processing ensures a clear and intelligible voice during communication via the app.
• Quick Voice Responses – Preset messages can be played with a single tap in situations where you cannot answer the call.
• Voice Alteration – Multiple voice profiles help protect the identity of the person communicating through the doorbell.
• Leaving a video message – if the doorbell is not answered, a visitor can record a message that is saved and displayed in the app.
• Two indoor chimes included – the doorbell ring can be heard in different parts of the home even without a cell phone.
• Customizable doorbell ringtones – the indoor unit offers multiple melodies, three volume levels, and app control.
• Light and voice indicators – Colored LEDs and voice announcements provide information about connection status, charging, recording, or device errors.

Storing and Managing Recordings

• Local recording storage – Event videos are stored on a memory card directly in the doorbell and are available even without a constant network connection.
• Power-saving recording modes – settings for recording duration and intervals between alerts minimize unnecessary data and energy consumption.
• Easy-to-use playback in the app – You can browse individual events on the timeline, revisit them, and review details.
• Cloud storage option – selected recordings can be backed up to the cloud and remain accessible even in the event of a device failure or damage.

Power and Operation

• Built-in rechargeable battery – the battery enables long-term operation without frequent charging and is protected against rough handling.
• Battery-powered operation options – the doorbell runs on the built-in rechargeable battery, which can be recharged occasionally or kept constantly charged via USB-C.
• Option to add a solar panel—this optional accessory helps keep the battery charged by harnessing solar energy.
• Advanced power management – settings for device wake-up, recording, and alarms reduce power consumption while maintaining core functions.

App and Smart Home

• Control via the TESLA Smart app – configuration, live view, and playback of recordings are all handled in a user-friendly mobile app.
• Quick Initial Setup via Bluetooth – BLE makes it easy to pair the device with your phone and home Wi-Fi for the first time.
• Smart Home Automation – The doorbell can be connected to smart locks, lighting, or an alarm system to create scenarios based on your daily routine.
• Remote door unlocking—when used with a compatible smart lock, you can let visitors in directly from the app.

Design, Installation, and User Experience

• Sleek, modern design – the doorbell looks elegant on various types of facades and does not significantly alter the appearance of the entrance.
• Weather resistance – IP65 rating makes the device suitable for year-round outdoor use.
• Simple Mounting on a Bracket – Using the mounting template, screws, or 3M tape simplifies installation without major construction work.
• Easy to remove for charging – a special pin included in the package allows you to safely release the doorbell and connect it to a USB-C charger.
• Intuitive controls – a prominent ring button, a toggle button, and status LEDs make it easy for everyone in the household to use.

Specifications

Video

• Video resolution: 2K (HD)
• Video codec: H.265 (main stream), H.264 (secondary stream)
• Video bitrate: main stream 1 Mb/s, secondary stream 384 kb/s
• Frame rate: main stream 15 fps, secondary stream 20 fps
• Lens: focal length 2.5 mm; aperture F2.2
• Field of view: 170° diagonally, 3:4 aspect ratio sensor
• Night vision: 850 nm infrared LEDs, automatic IR-CUT switching, maximum range approx. 5 m

Audio

• Two-way audio transmission: built-in microphone and speaker with echo cancellation
• Audio input: 1× microphone
• Audio output: 1× speaker

Network and Connectivity

• Wi-Fi: 2.4 GHz, IEEE 802.11 b/g/n
• Wi-Fi frequency range: 2.412–2.472 GHz; Wi-Fi transmission power 17.5 dBm
• Communication with doorbells (bells): RF 433 MHz; 433 MHz transmission power −2.01 dBm
• Supported voice assistants: Amazon Alexa, Google Assistant
• Supported apps: TESLA Smart, Smart Life, Tuya

Storage

• Memory card: microSD (TF) up to 128 GB for local storage of recordings
• Cloud storage: supports storing event recordings in the cloud (depending on the selected service plan)

Power

• Battery type: built-in rechargeable Li-ion, non-removable, with charging protection
• Battery capacity: 5200 mAh
• Battery life: approximately 4–6 months when waking up 10 times a day
• Doorbell power supply: built-in rechargeable battery, charging or continuous power supply via DC 5 V / 1.5 A (USB-C)
• Connector: USB-C for charging

Dimensions and weight

• Doorbell dimensions (W × H × D): 48 × 155 × 32 mm
• Alarm clock weight: approx. 210 g

Operating Conditions

• Doorbell operating temperature: −20 °C to +50 °C
• Operating humidity of the doorbell: 10–95%, non-condensing
• Bell protection rating: IP65
• Gong operating temperature: −10 °C to +45 °C
• Gong operating humidity: < 90% at 40 °C
• Gong power supply: 100–240 V ~ 50/60 Hz, for indoor use only (excluding bathrooms)

Package includes

• 1× TESLA SecureQ DB5 smart doorbell

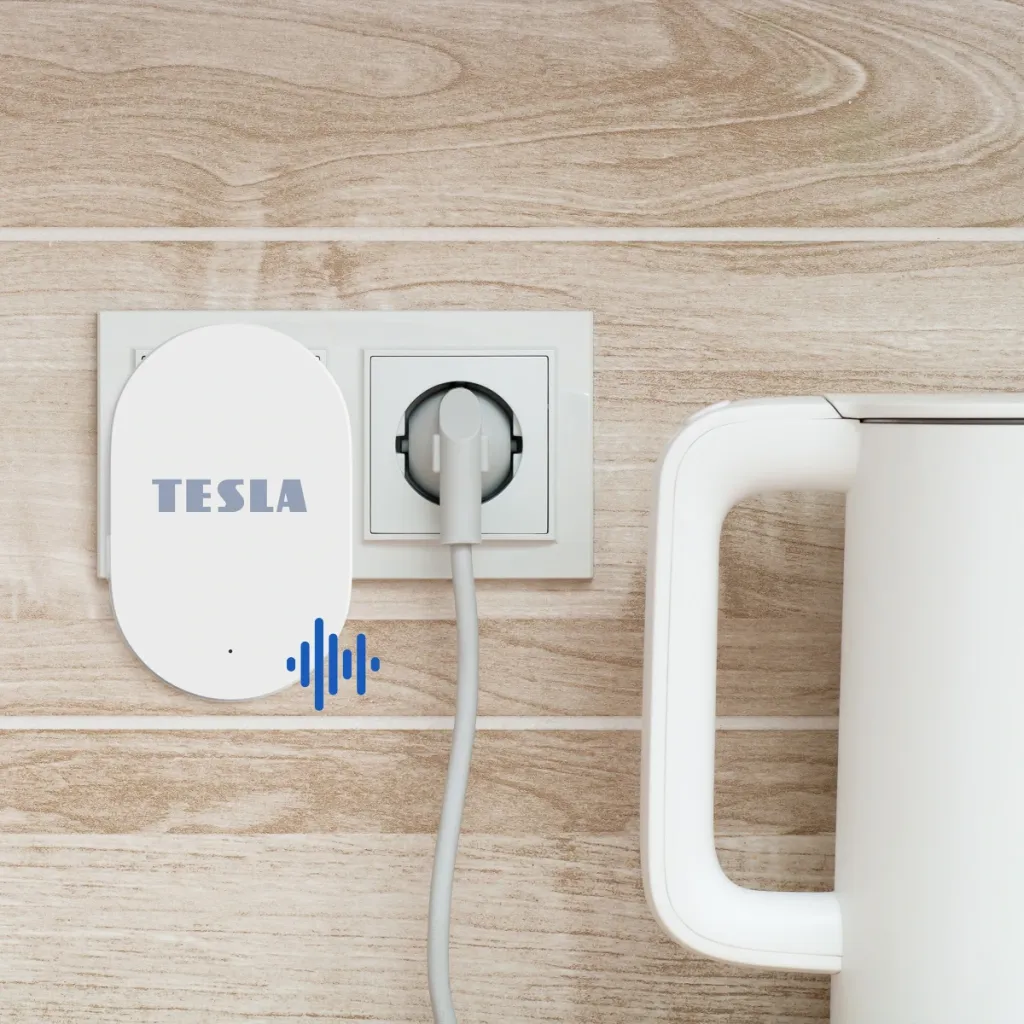

• 2× chime (indoor unit)
• 1× disassembly tool
• 1× power cable
• 1× connecting wire
• 1× power extension cable
• 1× hole-marking template
• 1× 3M tape
• 1× mounting bracket
• 1× set of screws
• 1× user manual
